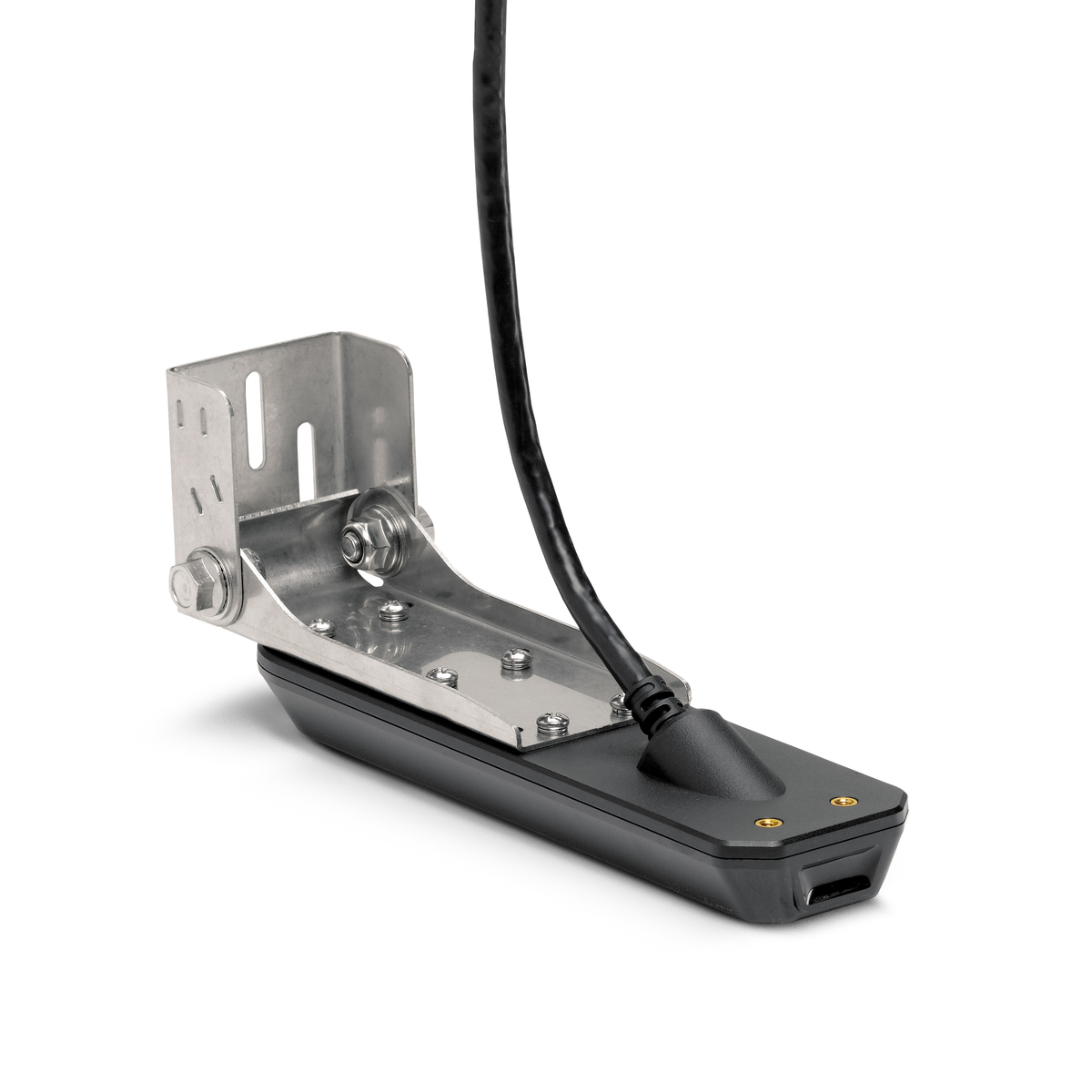

XM 14 HW MSI T - SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

• Compatible with: All APEX models, All SOLIX CHIRP MEGA SI+ G2 and G3 models  SOLIX 10, SOLIX 12, SOLIX 15
• Cable Length: 20 Feet
• Transom Mount
• Sonar MEGA Imaging +, Dual Spectrum
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
• 1-Year Limited Warranty

This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SIPlus GPS G2, SOLIX 12 CHIRP MEGA SIPlus GPS G2, SOLIX 15 CHIRP MEGA SIPlus GPS G2.

Depth: 1200ft (365m)MEGA

Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SIPlus: 1075-1150 kHz - 400ft (122m)MEGA

Side ImagingPlus Transom Mount Transducer supports MEGA ImagingPlus/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz.

Includes built-in temperature sensor, rugged composite design, all metal bracket and 20 n #8217; cable.

SpecificationsMount TypeTransomSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsSOLIX 10, SOLIX 12, SOLIX 15
