Humminbird Accessories

AS HHGPS

7000301

Handheld GPS Connection Kit

Handheld GPS Connection Kit includes: NMEA connection cable, Y cable and detailed instructions. This connection kit requires the handheld GPS manufacturers NMEA data cable to complete the connection to your handheld GPS.

List $23.99

AS PC2

7000351

PC Connection Kit

The Advanced Accessory System PC Connection Kit includes: PC Serial Port Cable with DB9 Connector, AA Battery Power Cable and detailed instructions. The PC Connection Kit requires: PC Serial Port, 8-AA Batteries, HumminbirdPC Software (see the Support section for details.)

List $23.99

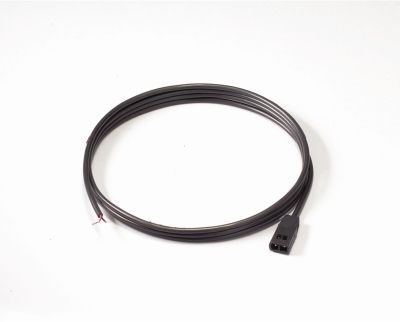

PC 10

7200021

Power Cable

6 ft, waterproof. Used with all Humminbird products produced since 1989, except the 1100 Series, 997, 797 and 798.

List $17.67

EC M10

7200961

Extension Cable

10' extension cable for transducers.

List $49.99

EC M30

7200962

Extension Cable

30' extension cable for transducers.

List $69.99

AS EC10

7200501

Fishing System Module Extension Cable

The Advanced Accessory System Extension Cable is a 10' cable that allows the connection of an Advanced Accessory System unit to a Matrix Fishing System unit. The Extension Cable works with GPS Receiver Kit (Part No. AS-GR4), Handheld GPS Connection Kit (AS-HHGPS), WeatherSense™ Fishing Condition Monitor (AS-BP), PC Connection Kit (AS-PC), and Y Cable (AS-YC).

List $29.99

AS YC

7200511

Fishing System Y Cable

The Advanced Accessory System Y Cable allows the connection of more than one Advanced Accessory System unit to a Matrix Fishing System unit. The Y Cable is included in the GPS Receiver Kit (Part No. AS-GR4) and the Handheld GPS Connection Kit (Part No. AS-HHPGS). Both sides of this Y cable are 12" long.

List $23.99

VC 1

7200541

Video Cable

Video Output Cable, for the 1100 Series. Cable is approximately 6' long with two standard male RCA connectors on the output side and one connector that is standard to the 1100 Series and select 800 and 900 Series products for hook up.

List $19.99

AS SIDB Y

7200551

Side Imaging Splitter Cable

Y Cable - Side Imaging and Dual Beam - allows you to use two transducers on one unit without the use of a transducer switch. For use with Side Imaging products only, in conjunction with a dual beam transducer only. For improved high speed performance for bottom tracking.

List $23.99

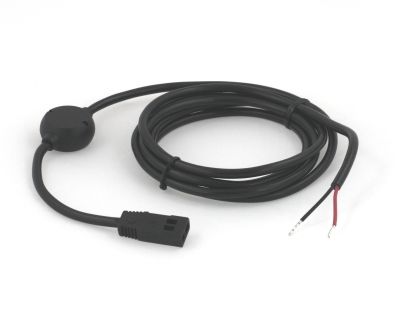

PC 11

7200571

Power Cable

Filtered power cable, 6 ft, waterproof. Used with all 1100 Series products, 997, 797, 798.

List $17.68

TS3

7200691

Transducer Switch

This switch allows you to use two transducers on one depth sounder. The cable going to the depth finder is approximately 3.5 feet long and the two cables going to the transducers are approximately 24 inches long.

List $81.99

TG W

7300101

Temperature Sensor

Transom mount sensor, 20 ft. cable. Temperature range of 25-99.9 degrees F.

List $44.99

SW

7300211

Speed Sensor

20' cable, transom mount. Speed range of 2-75 MPH. Will not work with any Wide Series products

List $40.99

MHX HS

7400111

Transducer Hardware

Transom mounting hardware includes metal mounting bracket.

List $24.99

MC W

7400361

Mounting System Cover

Mount cover which provides protections for the unit's connector panel, keeping rain and dirt out of the electrical connections while the unit is not in use (removed from the base). Made of durable textured vinyl. Used with the MS2-Y, MS2-G, MS-B and MS-M.

List $14.51

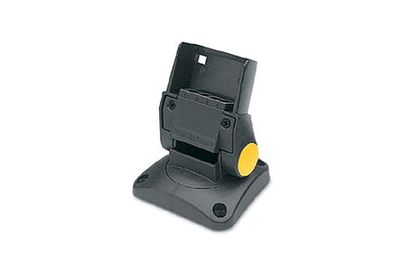

MS M

7400771

Unit Mount

Quick disconnect mounting system. Tilts and swivels.

List $32.99

MBCC M

7400781

Connector Collector

This connector manages the cables that connect into the back of your unit, holding them securely in place.

List $15.15

MHX SHS2

7400791

Transducer Mounting Hardware

Mounting hardware for transom mount transducers. Includes the plastic bracket with plastic pivot. Not compatible with transducers that have a metal bracket.

Discontinued
MKH 2

7400821

Mounting Knobs

For all 800 & 900 Series units. Set of two knobs.

List $11.99

IDMK 700

7400841

Indash Mounting Kit

For most 700 Series products. See list below. We do not recommend using with any product that has an internal GPS receiver. Requires an opening of 5.76"W X 4.46"H.

List $23.99

IDMK 300

7400861

Indash Mounting Kit

For all 300 Series products.

List $23.99

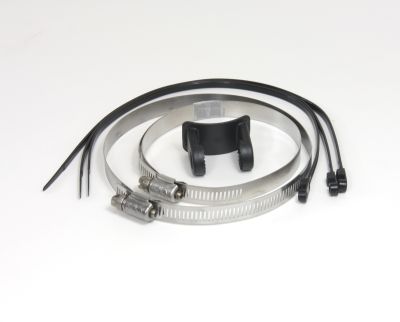

AD XTM 9

7400871

Transducer Mounting Hardware This hardware kit adapts our standard transom mount transducers in the list below for use on the trolling motor.

List $20.98

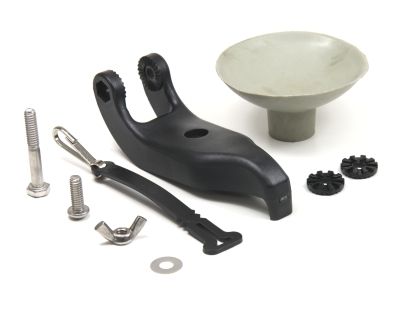

MHX XNPT

7400901

Transducer Hardware

Mounting hardware and suction cup for portable XNT transducers.

List $21.21

MHX XNTF

7400911

Transducer Mounting Hardware

Mounting hardware for the XNTstyle transom mount transducers. Does not kick up.

REPLACED BY PART MHX NNT BELOW # 740093-1 with Kick Up Bracket Option CLICK HERE

Discontinued Replaced with 740093-1 Below

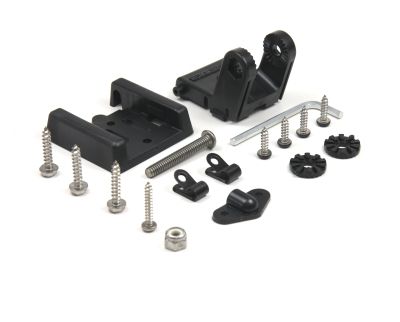

MHX XNT

7400931

Transducer Hardware

Mounting hardware for the XNT transom mount transducers. Includes a kick up bracket

List $17.69

MHX XMK

7401031

Kayak Mounting Hardware

Transducer Mounting Hardware for installation in a Kayak. Kit includes surface preparation products in addition to a transducer cradle and adhesive products.

List $44.99

MS PM2

7401311

Unit Mount (MS PM 7401061 Replaced with MS PM2 7401311

Swivel and tilt mount for Piranha units produced in 2009 and later.

List $29.99









































:
